Stereotaxic Apparatus

Stereotaxic Instruments

null

Large Animal Stereotaxic Instruments 68901

This instrument incorporates all the features of standard stereotaxic instrument and is applicable for neuroscience experiments on most large laboratory animals.Read More »
null

Large Animal Stereotaxic Instruments 68902

This instrument incorporates all the features of standard Stereotaxic instrument and is applicable for neuroscience experiments on most large laboratory animals.Read More »
null

Stereotaxic for Rat and Mouse, Portable 68526

Stereotaxic for Rat and Mouse, Portable,both rat & mouse adaptor, ear bars can be installed. transport whole uni whole uni transport whole uni whole unRead More »
null

Desktop Digital Stereotaxic Instruments 68025

Desktop Digital Stereotaxic Instrument exhibits all the features of the Standard Stereotaxic Instrument.Read More »
null

Stereotaxic for 2 Mice, Portable 68517

RWD’s new design Mice Stereotaxic Instrument was specifically designed with knock-out and transgenic neuroscience research.
Read More »

Animal Adaptors

null

68076A Tree Shrews Anesthesia Adaptor

According to the three-dimensional structure of the tree shrew brain.
null

Mouse Adaptor 68055

It holds the mouse head by a palate bar and nose clamp.
null

Cat/Monkey Adaptor 68041

This adaptor includes ear bars and raising block(65mm).
null

Rat Adaptor-Aural 68022(customized)

This adapter is designed for auditory research. Instead of holding the rat head by ear bars and incisors, it holds the head firmly by orbital approach to ensure no obstacle while auditory stimulation.
null

Dog/Monkey/Pig Adaptor 68081

This adaptor is used for large animal stereotaxic instrument, and it is ideal for dogs, monkeys and pigs around 10kg.

Ear Bars

null

45°Ear Bars for Rat, One pair 68302

This model of ear bars has 45° taper and will not puncture the eardrum. It is good for chronic study.
null

Riser Ear Bars 68413

This model of ear bars can lift the animal head up 50mm. This height can be customized.
null

Ear Bars, Rat, 18 Deg. 68301

The tip of ear bars can reach far into the ear canal, which fixes the skull firmly and conveniently.
null

Ear Bars, Mouse, Non-Rupture, Cuff 68307

With hollow serrated tips, the ear bars provide a secured holding through holding the sides of skull without affecting the ear canal.
null

Mouse Ear Bars 68306

This model of ear bars is specifically designed for mouse with fragile skull.

Laser Speckle Perfusion Imager

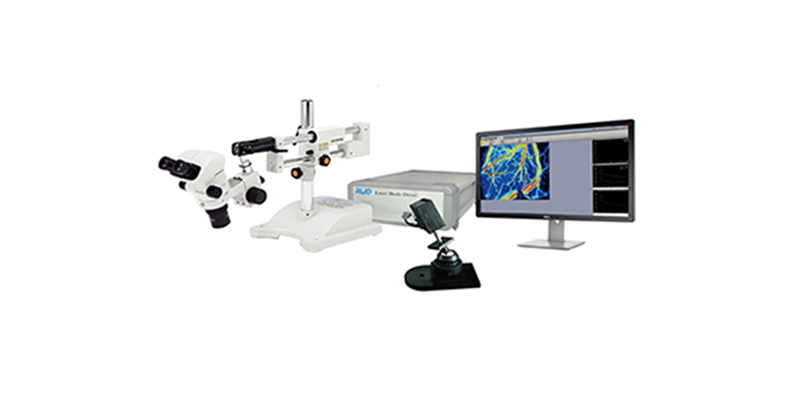

RFLSI Pro Laser Speckle Perfusion Imager

RFLSI Pro Laser Speckle Perfusion Imager is based on the latest LSCI technology (Laser Speckle Contrast Imaging/LSCI, Laser Speckle Ratio Analysis). With the advantages of the unique non-contact, high time and spatial resolution, rapid imaging, it provides a new recording way for the life sciences basic research and clinical medical.

Rapid ●High-resolution ●Large area ●Non-contact ●No damage
Product Introduction

RFLSI Pro Laser Speckle Perfusion Imager is based on the latest LSCI technology (Laser Speckle Contrast Imaging/LSCI, Laser Speckle Ratio Analysis). With the advantages of the unique non-contact, high time and spatial resolution, rapid imaging, it provides a new recording way for the life sciences basic research and clinical medical, which can achieve real-time dynamic blood flow monitoring and video imaging, it is the vital basis for understanding the organization, organ pathology and physiological indicators. The instrument does not need any contrast agent, the time resolution can be in milliseconds, the spatial resolution can be in microns. It also achieves the requirements of real-time observation of microvascular blood flow distribution and relative changes in values.

Product Features
  • High time&spatial resolution、High contrast
  • Non-contact, No contrast agent
  • Continuous imaging, No need to scan
  • Multi-output: Video, Image, Blood flow data, Diameter analysis
Performance Advantages
  • Real-time monitoring of two-dimensional blood flow images in microns. Use corrected static tissue structure interference and multiple scattering effects algorithm to quantitatively analyze blood flow changes and improve the accuracy of blood flow monitoring in vessels of different diameter
  • With the function of real-time online and off-line analysis of mean flow-rate and the vascular diameter in ROI (Region of Interest), and off-line analysis of mean and standard deviation of TOI (Region of Interest), supporting the selection, copy, and deletion of ROI for any shape and quantity, and the ROI position and size can be adjusted with the mouse by free dragging and dropping
  • Maintain a high imaging speed of not less than 60fps under Full- Frame state (the camera’s area array is all used)
  • Real-time focal length adjustment, read the magnification directly, no calculations required.
  • Select multiple vessels, online/off-line analysis of vascular diameter and its changes to meet the requirements of hemodynamics research
  • Multiple data storage format: Original blood flow-rate data /Standard imagesinvarious formats (jpg, bmp, png) /.avi format video / etc.
  • Multiple blood flow image acquisition methods: flexible continuous acquisition, designated time interval acquisition, designated frame number acquisition, etc.
  • Highly coherently stable laser light source and low noise 12bit fast camera ensure the stability of excellent flow-rate measurement
  • All-inclusive supporting solutions and after-sales service
Application Areas

√ CBF
√ MCAO model
√ Gastrointestinal blood flow
√ Lower limb ischemia / Angiogenesis
√ Burns assessment
√ Skin patch test
√ Cerebral cortex diffusion inhibition
